Material: High Manganese Steel (Mn13Cr2, Mn18Cr2) / Chrome-Molybdenum Alloy
Hardness: 200-300 HB (As-Cast), 500-550 HB (Work-Hardened)
Impact Resistance: ≥150 J/cm²
Lifespan: 2–3x Longer Than Standard Liners
Customization: Tailored Shapes & Thickness (20–150mm)
-Applications
Mining (Gold, Copper, Iron Ore)
Cement & Clinker Grinding
Coal-Fired Power Plants
Chemical & Industrial Mineral Processing
-Advantages
Reduced Downtime with Enhanced Wear Resistance
Optimized Grinding Efficiency via Wave, Rib, or Step Designs
Easy Installation with Boltless/Self-Fastening Systems
-Certifications
ISO 9001, ISO 14001
Compliant with ASTM A128, DIN 1695 Standards
A ball mill liner set is a system: the shell profile controls how the charge is lifted, the end liners absorb the cascade at the heads, and the grate sets the product size. Buying them from one foundry means the profiles and the bolt patterns are designed together.

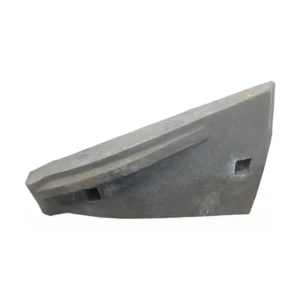

Grindium casts ball mill shell liners in wave, step or classifying profile, plus feed and discharge end liners, grate plates and lifter bars, in Mn13Cr2, Mn18Cr2, Cr-Mo and high chrome Cr26, from 20 kg to 3 t per piece.
Material and profile selection
Position
Material
Profile
Typical life
1st chamber shell
Mn13Cr2 / Cr-Mo
Step, wave
8-14 months
2nd chamber shell
Cr-Mo / high chrome
Classifying, wave
12-24 months
Feed end liner
Mn13Cr2 / Mn18Cr2
Smooth
10-18 months
Discharge end liner
Mn13Cr2 / Cr-Mo
Smooth + grate
8-14 months
Grate plate
High chrome Cr26
Slotted
6-12 months
Specifications
Item
Range
Mill diameter
1.2-6.0 m
Plate thickness
30-120 mm
Single weight
20-3,000 kg
Bolt hole tolerance
+/-1.5 mm
Hardness
HB 180-220 (Mn) / HRC 58-62 (Cr26)
How we match a liner set to your mill
Pattern made from your drawing, or reverse-engineered from a worn liner
Lifter height and face angle set to mill speed and ball size
Plate joints staggered so no continuous wear groove forms
Set marked by position and packed chamber by chamber
